Open Top Container is also called an open top sea container, top open sea container, or open top shipping container which is suitable for loading large and large objects and heavy objects that need to be hoisted, such as glass plates.

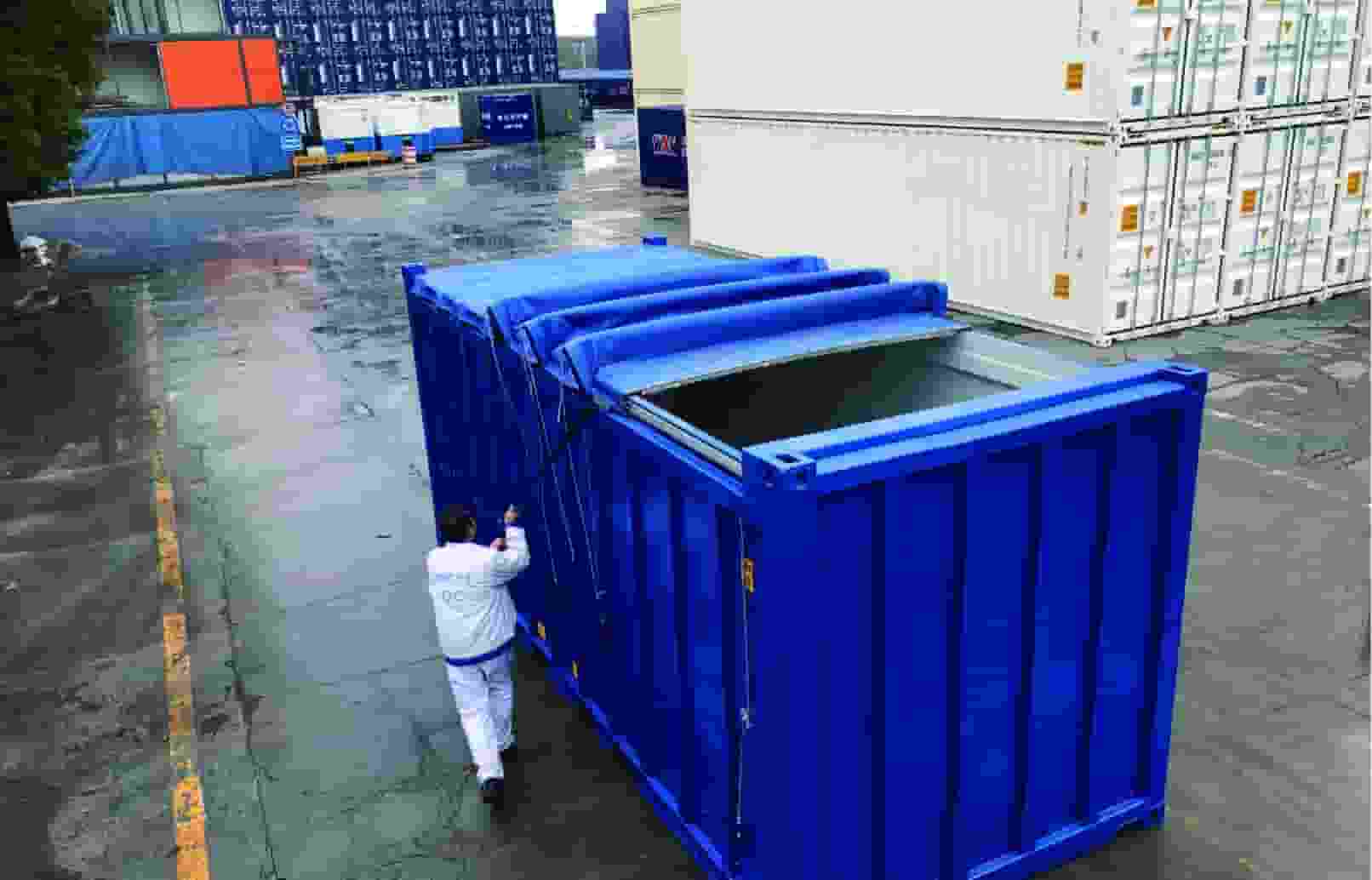

This kind of container does not have a rigid top, but it has a canopy made of canvas, plastic cloth, or plastic-coated cloth supported by a foldable top beam. The top is covered with a waterproof cloth during shipment. The watertight requirement is the same as that of a dry cargo box. Loading and unloading goods on top of the box.
Open Top Container is also known as open top container, open top cabinet.
The container has no rigid roof, but a canopy made of canvas, plastic cloth or movable steel roof supported by a folding top beam.
It is suitable for loading large objects with high volume and heavy objects to be hoisted, such as glass panels, etc.
It is necessary for some special varieties, as it can be loaded from the top, especially for items with wide variations in machinery or volume.
Open Top Container is available in 20 feet and 40 feet.
20-foot Open Top Container:
The content volume of 5.89 meters × 52612.32 meters × 2.31 meters, the door is 2286mm × 2278mm, the distribution gross weight of 20 tons, volume of 31.5 cubic meters.

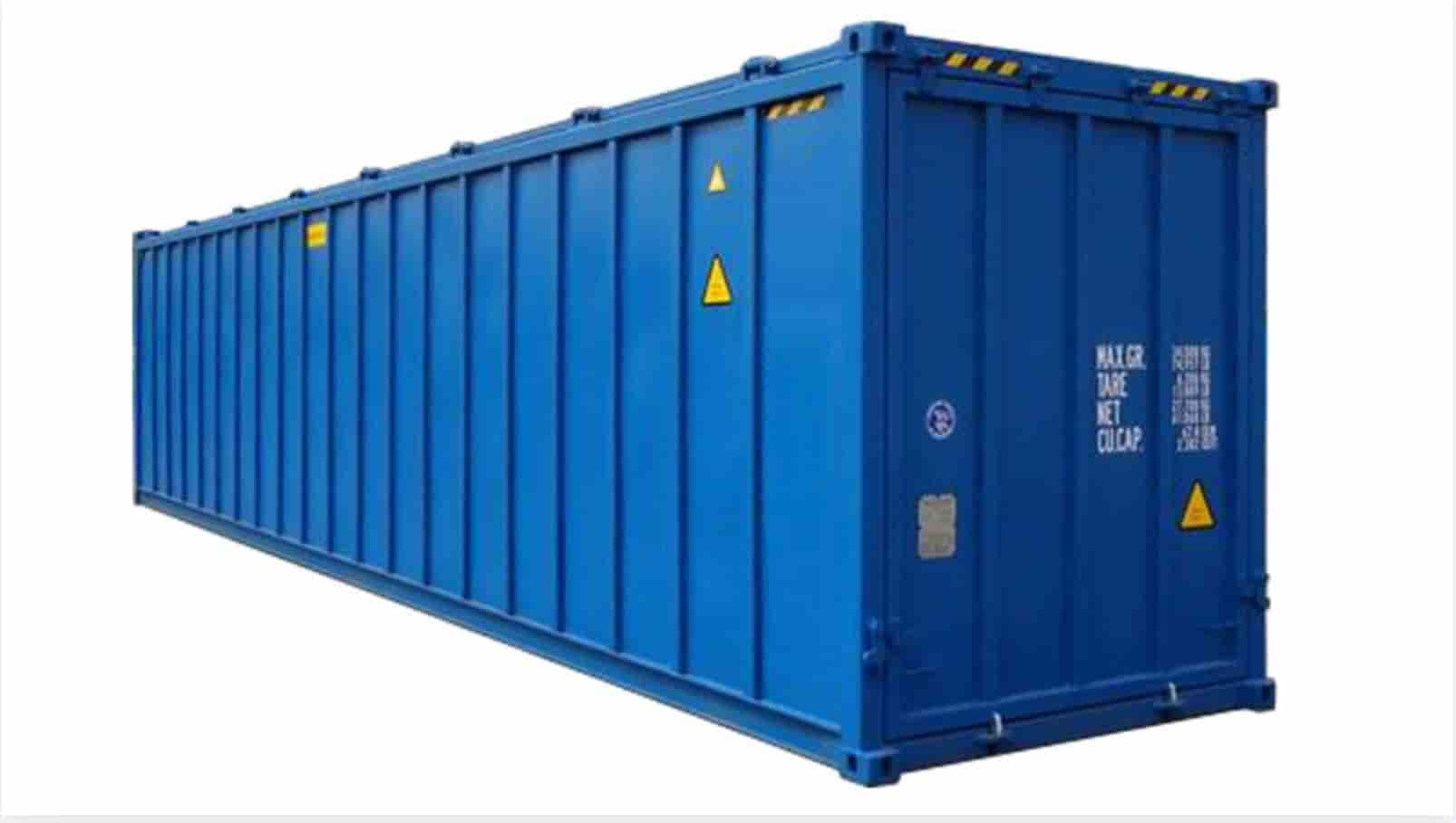

40 feet Open Top Container:
The content volume of 12.01 meters × 2.33 meters × 2.15 meters, the door is 2286mm × 2278mm, the distribution gross weight is 30.4 tons, volume of 65 cubic meters.

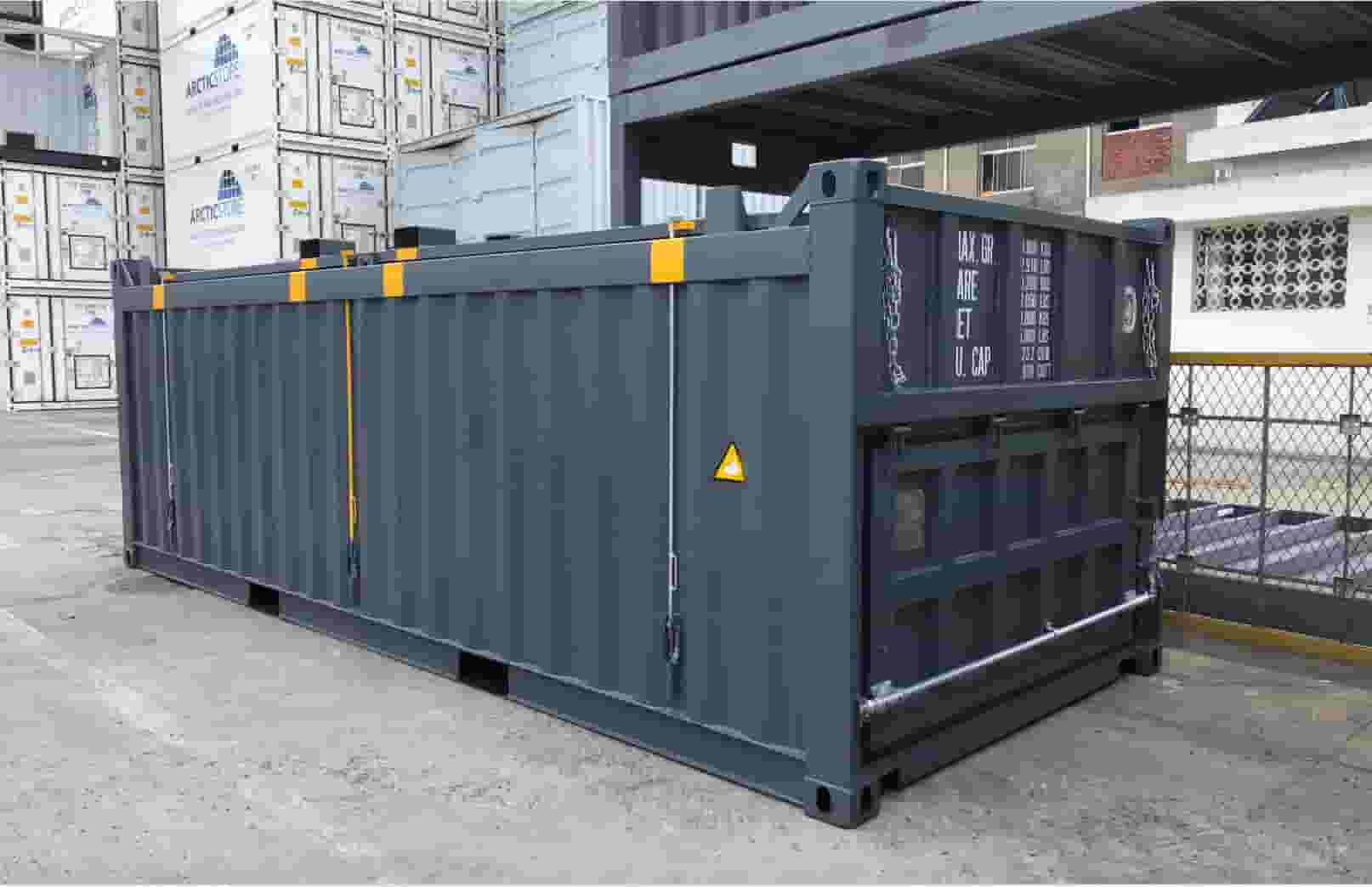

CIMC TLC|RYC 20′ Half Height Open Top Container
- Open top with tarpaulin or hard roof
- Removable door header for easy loading from the rear
- 2 x 20’HH connected as 20’ for shipment
20′ Half Height Open Top Container Data Sheet
| External Size | 6058(L) x 2438(W) x 1295(H) mm |
| Internal Size | 5898(L) x 2352(W) x 1055(H) mm |
| Rear Door Opening | 2340(W) x 985(H) |
| Internal Cubic Capacity | 14.6 CU.M |
| Maximum Gross Weight | 30480 KGS |
| Tare Weight | 1940 KGS |
| Maximum Payload | 28540 KGS |
| Stacking Test Load ( Per Post) | 86400 KGS |
CIMC TLC|RYC 20′ Soft Open Top Container Introduction
- Open top with tarpaulin
- Removable door header for easy loading from the rear
20′ Soft Open Top Container Data Sheet
| External Size | 6058(L) x 2438(W) x 2591(H) mm |
| Internal Size | 5898(L) x 2352(W) x 2350(H) mm |
| Rear Door Opening | 2340(W) x 2280(H) |
| Internal Cubic Capacity | 32.6 CU.M |
| Maximum Gross Weight | 30480 KGS |
| Tare Weight | 2290 KGS |
| Maximum Payload | 28190 KGS |
| Stacking Test Load ( Per Post) | 86400 KGS |

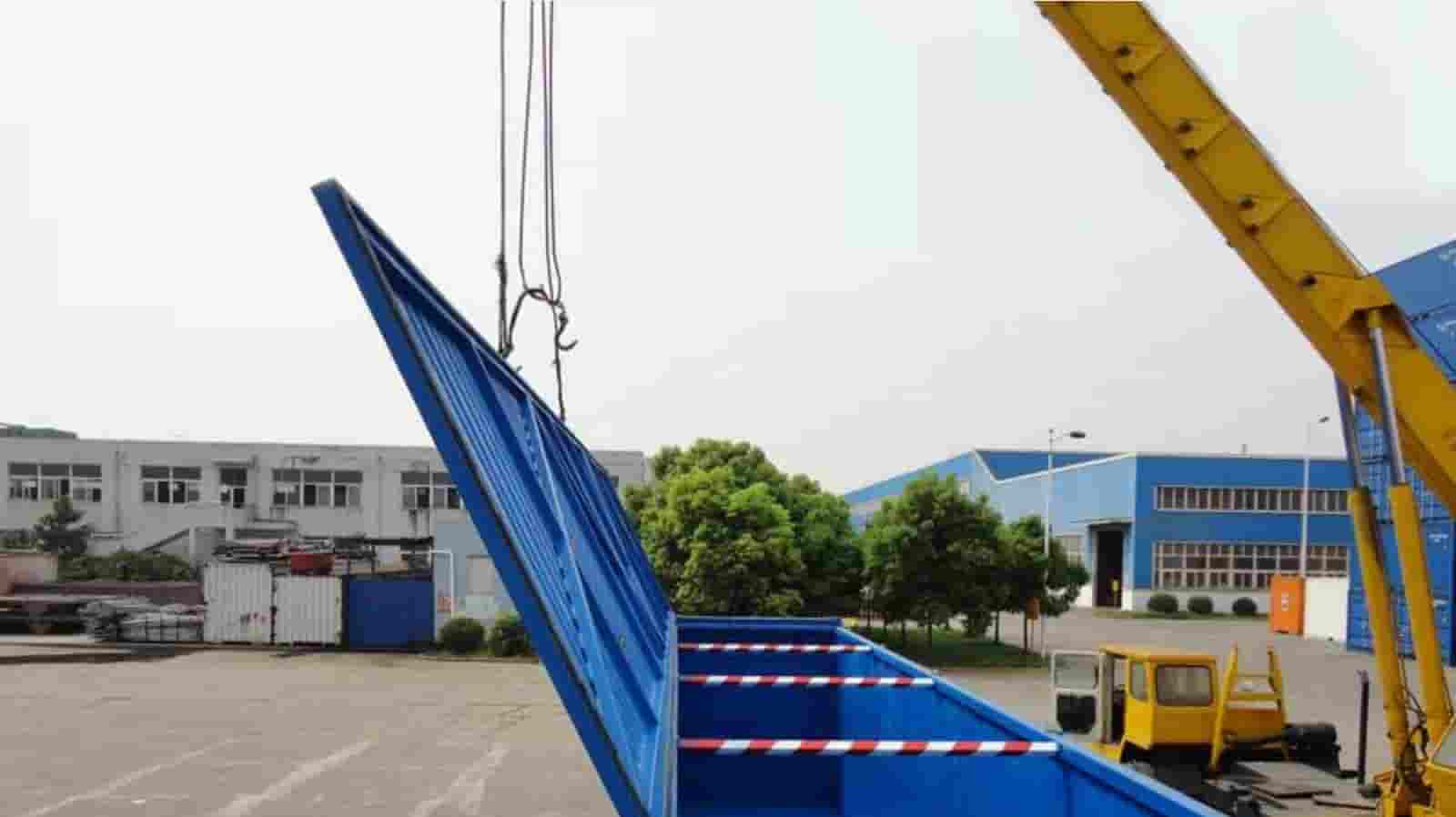

CIMC TLC|RYC 20′ Hard Open Top Container Introduction
- Open top with a hard roof
- Removable door header for easy loading from the rear
20′ Hard Open Top Container Data Sheet
| External Size | 6058(L) x 2438(W) x 2591(H) mm |
| Internal Size | 5898(L) x 2334(W) x 2391(H) mm |
| Rear Door Opening | 2340(W) x 2262(H) |
| Internal Cubic Capacity | 32.9 CU.M |
| Maximum Gross Weight | 30480 KGS |
| Tare Weight | 2600 KGS |
| Maximum Payload | 27880 KGS |
| Stacking Test Load ( Per Post) | 86400 KGS |
Testing
Prototype testing
The prototype container manufactured in accordance with this specification will be tested by manufacturer under the supervision of classification society.
Test items & loads Test methods
A) Stacking
Internal load: 1.8R-T
Test load: 86,400 kg/post.
Hydraulic cylinder load will be applied to each corner post through top corner fittings.
Offset: 25.4 mm lateral, 38.0 mm longitudinal
Time duration: 5 minutes
B) Lifting (from top corner fitting)
Internal load: 2R-T
Lifting vertically.
Time duration: 5 minutes
C) Lifting (from bottom corner fittings)
Internal load: 2R-T
Lifting 45 deg. to the horizontal.
Time duration: 5 minutes
D)Lifting (for forklift pockets)
Internal load: 6R-T
Lifting by horizontal bars.
Bar length: 1,828 mm
Bar width: 200 mm
Time duration: 5 minutes
E) Restraint (longitudinal)
Internal load: R-T
Test load: 2R
Hydraulic cylinder load will be applied to the bottom side rails.
Two times for pulling and pushing.
Time duration: 5 minutes
F) Floor strength.
Test load: 5,460 kgs (12,000 lbs)
Use of a special truck.
Total contact area: 284 cm2
Wheel width: 180 mm
Wheel center: 760 mm
G) Wall strength (front)
Test load : 0.4(R-T)=0.4P
Compressed air bag will be used。
Time duration: 5 minutes
H)Wall strength (side)
Test load : 0.5(R-T)= 0.5P
Compressed air bag will be used on one side only.
Time duration: 5 minutes
I) Wall strength (door)
Test load: 0.4(R-T)= 0.4P
Same as the front wall strength
J) Roof strength (weakest part)
Test load: 300 kgs
Applied area will be 600×300 mm longitudinal and transverse.
K) Racking (transverse)
Test load: 15,240 kgs
Hydraulic cylinder load will be applied to the header rail through top corner fittings.
Two times for pulling and pushing.
Time duration: 5 minutes
L) Racking (longitudinal)
Test load: 7,620 kgs
Hydraulic cylinder load will be applied to the top side rail through the top corner fitting on one side only.
Two times for pulling and pushing.
Time duration: 5 minutes
M) Operation of door
After completion of test, the operation of doors, locks, hinges, etc. will be checked.
N) Dimensions and weight
After completion of test, the dimensions and weight will be checked.
O) Weatherproofness
Inside dia. of nozzle: 5mm
Distance: 1.5 m
Speed: 100 mm/sec
Pressure: 1 kg/cm2
* Note: R – Maximum Gross Weight
T – Tare Weight
P – Maximum Payload
