Bulk Container

CIMC Yangzhou Base Bulk Container has been widely used in chemical, clean energy sources, and other industries. Bulk Container is also called bulk shipping container, bulk sea container, bulk storage containers, or bulk storage container.

Description

Bulk Container is a container with a loading port at the top and a releasing port at the bottom, which is mainly used to ship unpackaged solid granular and powdered goods. In addition to the door, Bulk Container also has 2 to 3 loading ports at the top of the box. When using, pay attention to keep the box clean and smooth, easy to unload the goods from the door.

Bulk Container is used to store soybeans, rice, malt, flour, corn, all kinds of feed, cement, chemicals and other bulk powder or granular goods. When loading grain, some Bulk Containers are equipped with fumigation attachments on top.

Bulk Container can save on packaging costs, reduce dust damage to human body and the environment, improve handling efficiency and reduce logistics costs.



CIMC Yangzhou Base Bulk Container Introduction



  • Bulk Container usually uses ISO 20ft reefer container or 20’ high cubic container, CIMC Yangzhou Base Bulk Container has passed CSC certification.

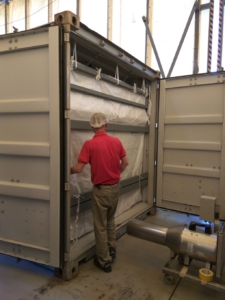

  • Bulk Container can be used with an inner bag for storage and transportation of bulk granular cargo.
  • Square pipes are used as inner pocket plugs.
  • As an optional fixing device, the roof entrance can be changed to a 2 or 3 square hatch, or a steel rope sliding hatch that can be operated from ground (patented design).
  • As an optional choice, the rear door can be replaced with self-dischare type tail gate(patented design).
  • CIMC Yangzhou Base Bulk Container is widely used in the field of chemical transportation and clean energy transportation.
  • Roof hatches for loading from top.
  • Small discharge door in rear or front.





Bulk Container Structural Features



  1. On the top of the box there are several loading port, after loading, can be completely closed.
  2. The inner wall of the Bulk Container is lined with a whole sheet of waterproof plywood. For easy removal of bulk cargo and easy cleaning after use, the plywood is coated with fiberglass.

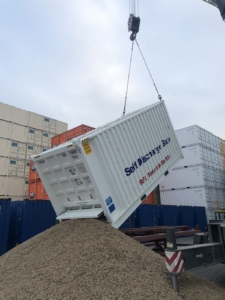

  3. Canvas funnel is usually provided on the inside of the rear door frame of the Bulk Container. Depending on the box type, some Bulk Containers are directly equipped with a discharge port on the rear door. When unloading, the container is tilted up by an automatic dump truck, so the cargo can be safely discharged from the discharge port.
  4. When loading ordinary groceries with Bulk Container, the canvas funnel can be removed and folded and stored in a fixed position inside the top of the box.



Bulk Container Data Sheet





External Size 6058(L) x 2438(W) x 2591(H) mm
Internal Size 5898(L) x 2350(W) x 2366(H) mm
Rear Door Opening 2343(W) x 2280(H)
Internal Cubic Capacity 32.8 CU.M
Maximum Gross Weight 30480 KGS
Tare Weight 2190 KGS
Maximum Payload 28290 KGS
Stacking Test Load ( Per Post) 86400 KGS



External Size 6058(L) x 2438(W) x 2591(H) mm
Internal Size 5898(L) x 2352(W) x 2352(H) mm
Tare Weight 2600 kg
Internal Cubic Capacity 32.6 Cu.m
Maximum Payload 27880 kg
Roof T2.0 mm SPA-H, with 3 circular type hatches
Side wall& End wall T2.0 mm SPA-H corrugation panel
Floor T6.0 flat plate or checker plate
Door T2.0 mm SPA-H corrugation panel

door opening width 2343mm, with 7 square tubes as inner bag stopper

Optional fixtures square hatches, slide hatches(operation in the ground)

normal tailgate with different heights, special tailgate with linkage system

special tailgate without Manual open(patent design), inlet and outlet design, plywood lining



We, CIMC container Yangzhou base is the subsidiary of China International Marine Containers (Group) Co, Ltd.(CIMC)

CIMC container Yangzhou is consit of 3 companies: TLC, RYC and Tailee, with more than 25 years` experience for container and innovative products` design and manufacturing.

ISO standard/Special dry container, ISO standard/Special reefer container, containerized integration and modular buildings.

We have totally 400,000m2 factory area, and 8 flexible production lines
Annual capacity:  150,000 TEU ISO/Special containers,  20,000 units modules
Staffs: 2,500
Annual Revenue: 2 Billion(RMB)

Pls contact us through:
*  Inquiry module in our website
* E-Mail: onlinesales@cimc.com
* Phones marked in the website contact page

We have standard product for ISO/Special container and Modular Buildings, we will reply you quickly with the quotation for such kind of product.

We also focus on the customized and both developed product,  the quotation will be sent after mutual discussion for detailed requirement.

We have various ISO and economical products, as well as the complex highly customized ones, the lead time is in range of 20 to 90 days, we will further discuss with you to confirm during both communication.

We have professional QC team to trace each production course and ensure the product quality from parts fabrication to final completion. We will provide the quality qualified document before delivery.

The third party inspection and certificates company could also be employeed as both agreement, we also welcome the client to send representative to visit our company for the course and final inspection before product delivery.

We locates besides local Yangzhou port, the products could be transported through local port to Shanghai port, then to final destination port allover the world.
If batch order, we can also deliver from the local port directly to destination port.

Besides the sea transportation,  road, railway even aircraft delivery is also available for part of the product and countries, we have professional logistic team to take charge of the service.

Standard product:    1 year for structure, 3 years for painting.

The customized product warranty will be discussed by both parties.
