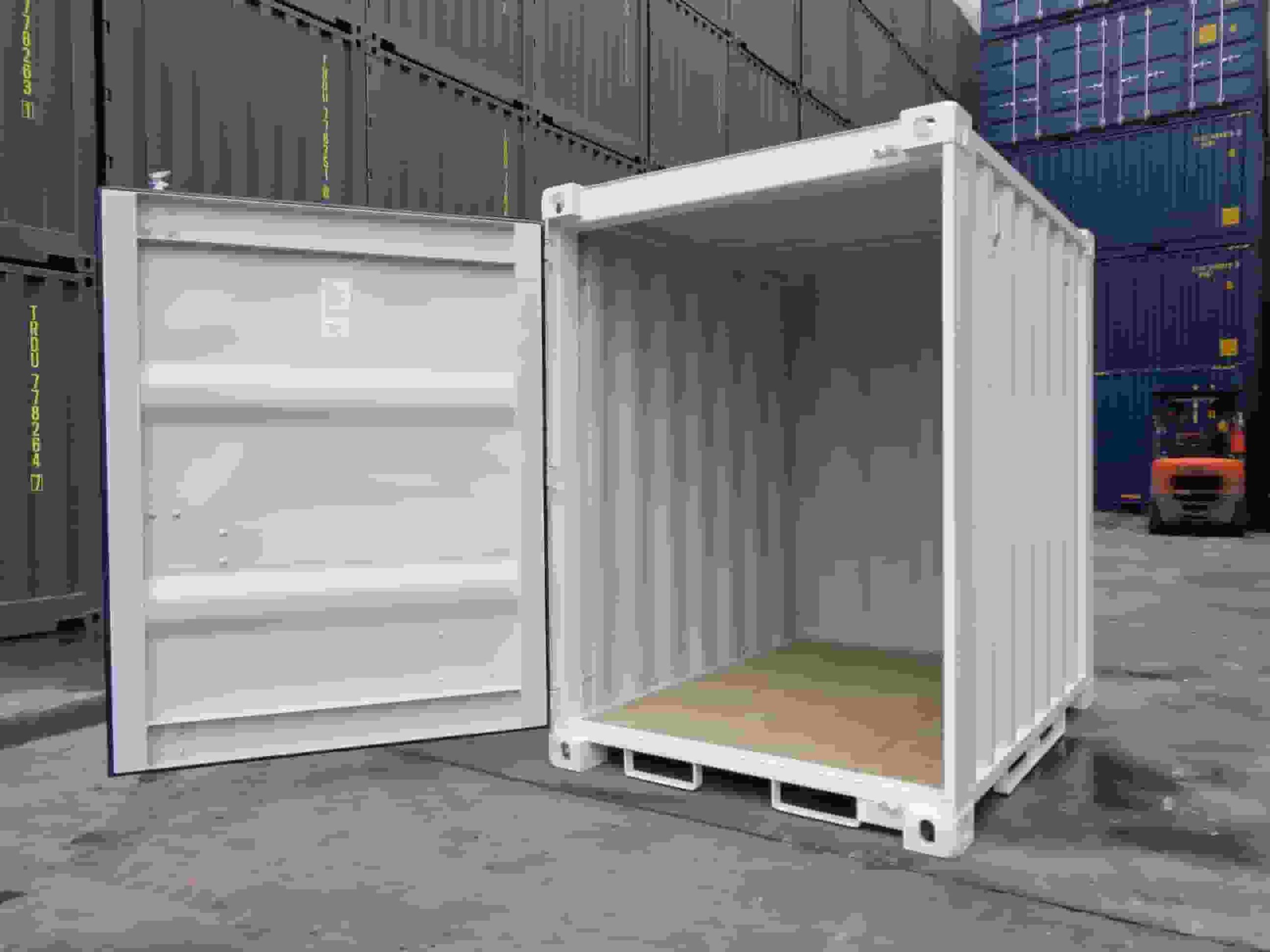

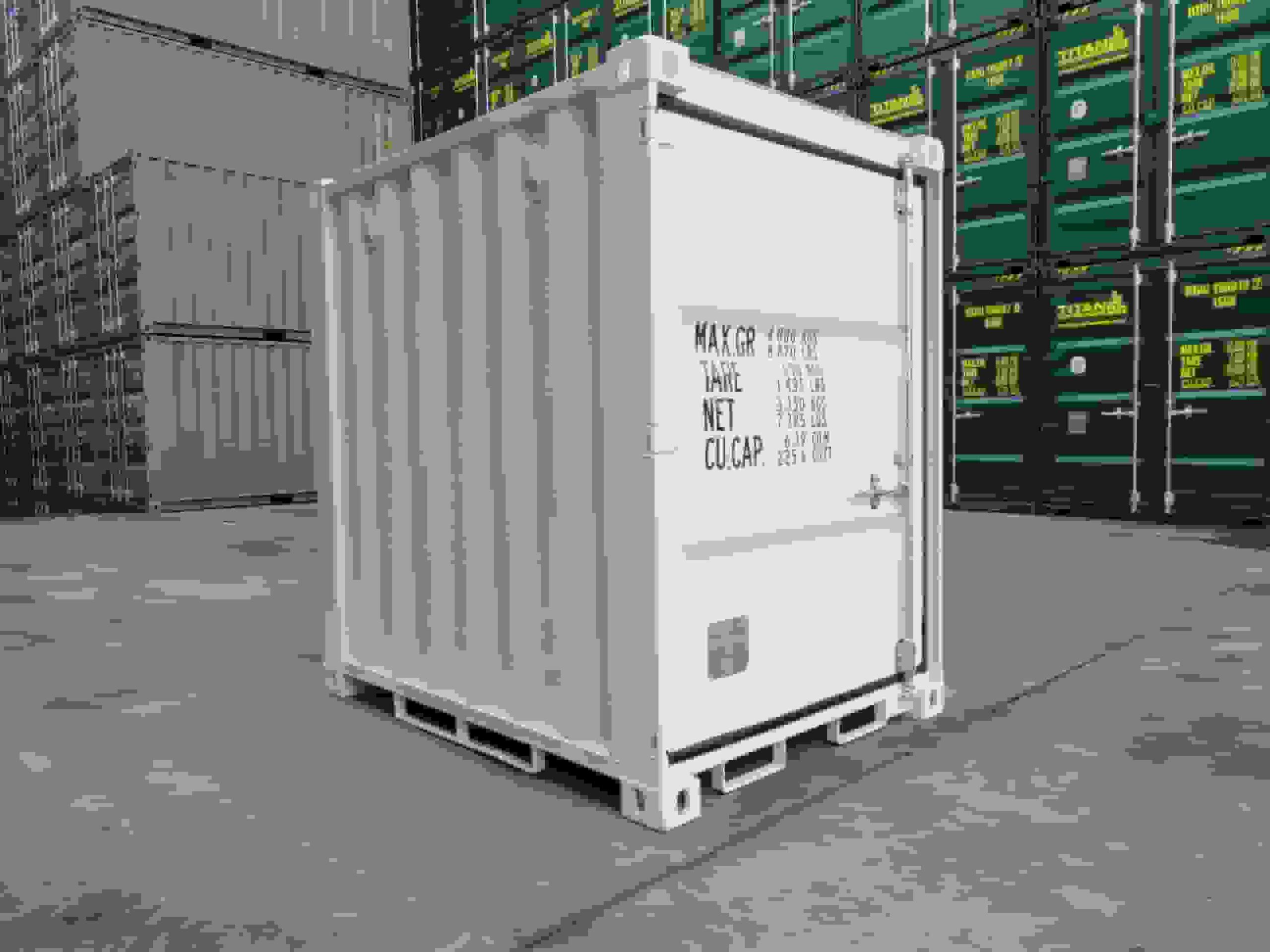

Mini Container

Mini Container is mainly used to ship groceries, usually used to ship stationery, daily necessities, medicine, textiles, handicrafts, chemical products, hardware and electrical appliances, electronic machinery, instruments and machine parts, etc.

Description

CIMC TLC|RYC Mini Container Introduction

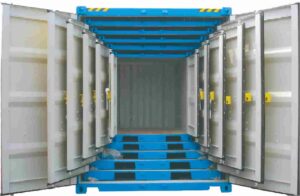

(10’+8’+6’) X 2 connected as 1X 20’ for shipment
Save freight cost
Option for 10’+9’+8’+7’+6’+5’

Mini containers – 5 units — Mini containers – 6 units

Mini Container Data Sheet

Product Datasheet	10′	8′	6′
External Size(mm)	2991(L) x 2438(W) x 2591(H)	2438(L) x 2200(W) x 2260(H)	1829(L) x 1960(W) x 1920(H)
Internal Size(mm)	2829(L) x 2253(W) x 2280(H)	2287(L) x 2122(W) x 2059(H)	1678(L) x 1872(W) x 1726(H)
Internal Cubic Capacity	15.95 CU.M	9.95 CU.M	9.95 CU.M
Maximum Gross Weight	10160 KGS	6000 KGS	5000 KGS
Tare Weight	1300 KGS	950 KGS	650 KGS
Maximum Payload	8860 KGS	5050 KGS	4350 KGS
Stacking Test Load(Per Post)	22860 KGS

What's your company like?

We, CIMC – TLC | RYC | XLC, is the subsidiary of China International Marine Containers (Group) Co, Ltd.(CIMC).
We are consist of Yangzhou CIMC Inteligent Equiprment Co. Ltd. (TLC), YangZhou Runyang Logistic Equipment Co., Ltd. (RYC) , Yangzhou CIMC New Energy Equipment Co. Ltd.(XLC) and Yangzhou Tonglee Reefer Container Co., Ltd. ( Prior operation entity).
We are the designer and manufacturer for various customized / ISO shipping container and related innovative products, with 30 years’ production experience.

What's your main product?

ISO standard/Special dry container, ISO standard/Special reefer container, containerized integration and modular buildings.

How about your company scale?

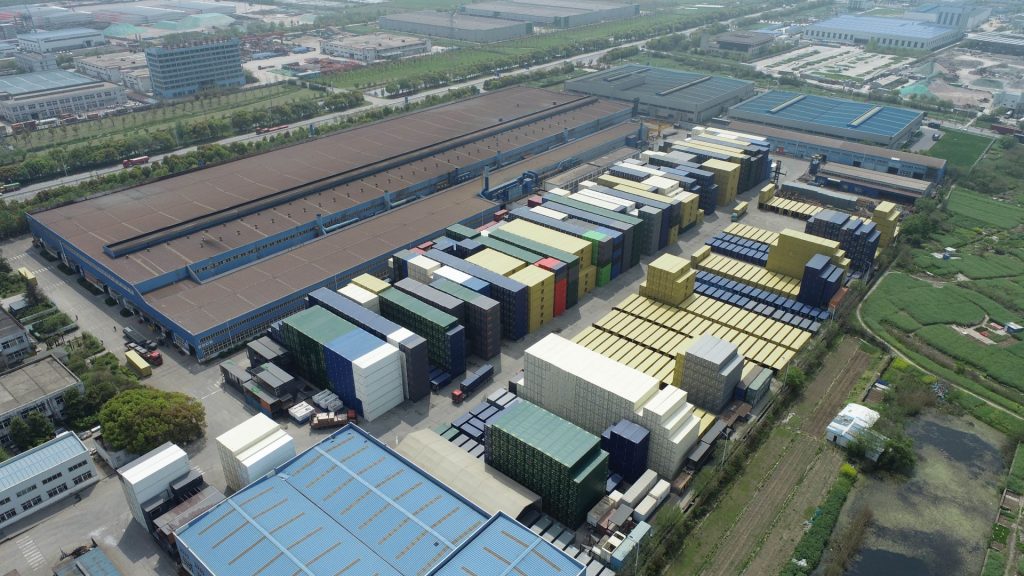

We owns 405,000 m2 industrial park, to contain our 3 factories ( TLC | RYC | XLC).
Annual production capacity: 180,000 units
Total Staffs: 3,500 | Engineers: 175 | Annual Revenue: 3 Billion (RMB)

How can I contact your company?

Pls contact us through:
* Inquiry module in our website
* E-Mail: [email protected]
* Phones marked in the website contact page

How can I inquire about the price of the relevant container product?

We have standard product for ISO/Special container and Modular Buildings, we will reply you quickly with the quotation for such kind of product.

We also focus on the customized and both developed product, the quotation will be sent after mutual discussion for detailed requirement.

What‘s the lead time for your product?

We have various ISO and economical products, as well as the complex highly customized ones, the lead time is in range of 20 to 90 days, we will further discuss with you to confirm during both communication.

How can I follow the product quality during production?

We have professional QC team to trace each production course and ensure the product quality from parts fabrication to final completion. We will provide the quality qualified document before delivery.

The third party inspection and certificates company could also be employeed as both agreement, we also welcome the client to send representative to visit our company for the course and final inspection before product delivery.

How do you transport containers?

We have professional logistic team to privde comprehensive transportation services, from Ex-works, FOB, CIF to DDU, DDP etc.
We locates besides local Yangzhou port, the products could be transported through local port to Shanghai port, then to final destination port allover the world.
If batch order, we can also deliver from the local port directly to destination port.

Besides the sea transportation, road, railway intermodal delivery is also available for part of the product and countries.

What's the warranty clause for the after sales service?

Standard product: 1 year for structure, 3 years for painting.

The customized product warranty will be discussed by both parties.

CIMC TLC | RYC | XLC adheres to strict quality control and continuous innovation. With more than 20 years development, we attained ISO certifications, third party factory approvals, specific product & operator certificates, as well as various awards and patents issued by various levels of government and related associations.

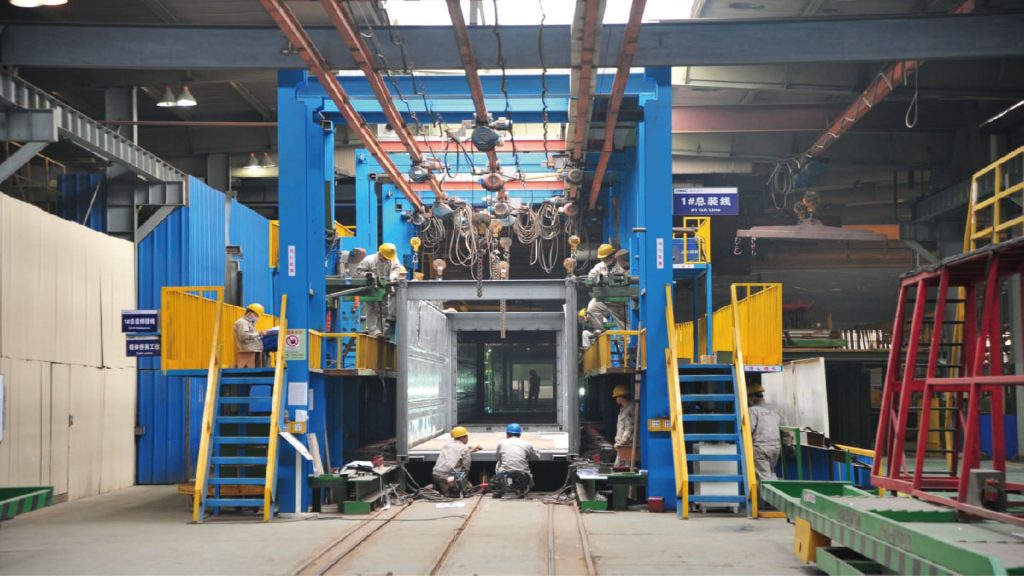

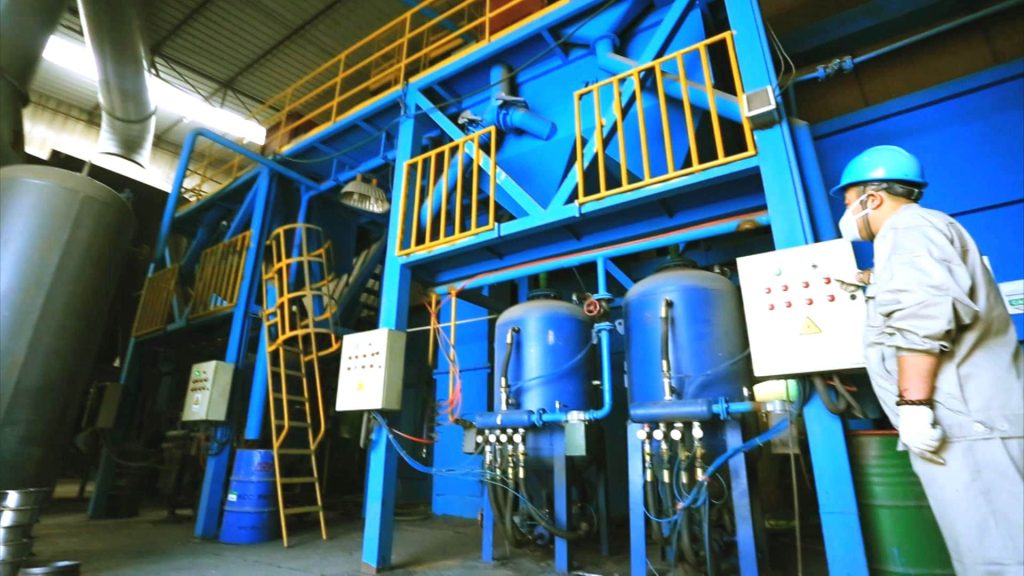

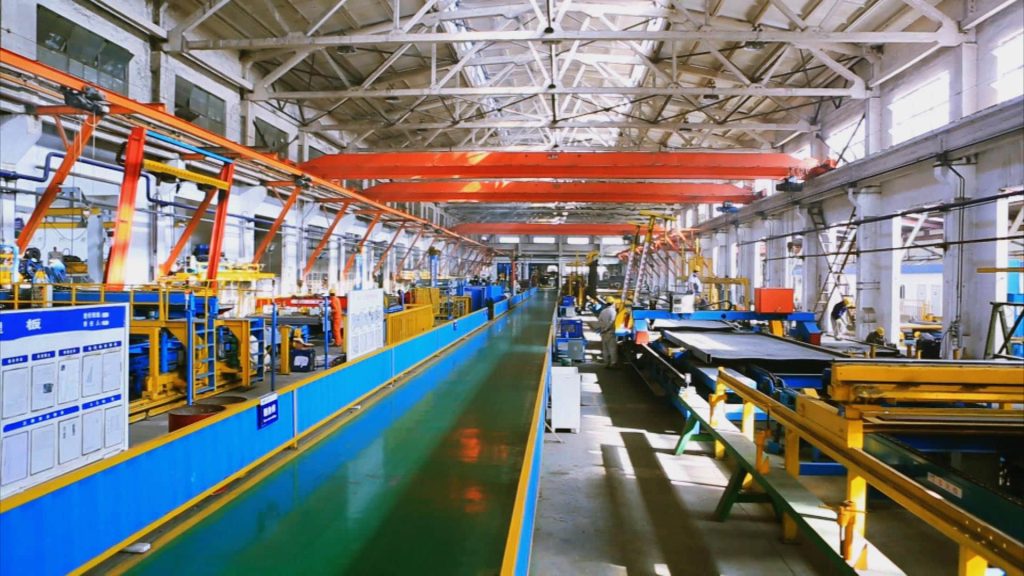

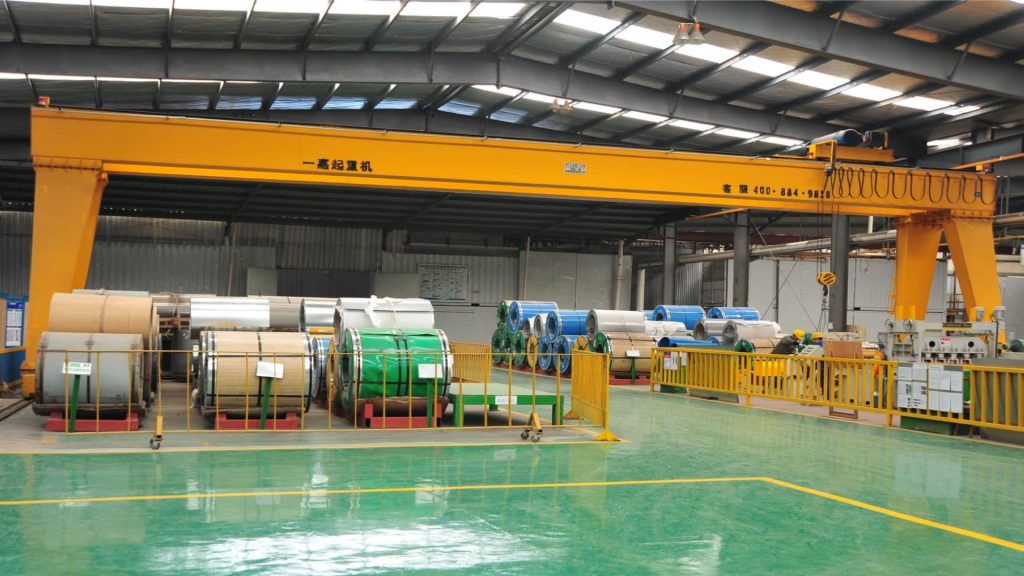

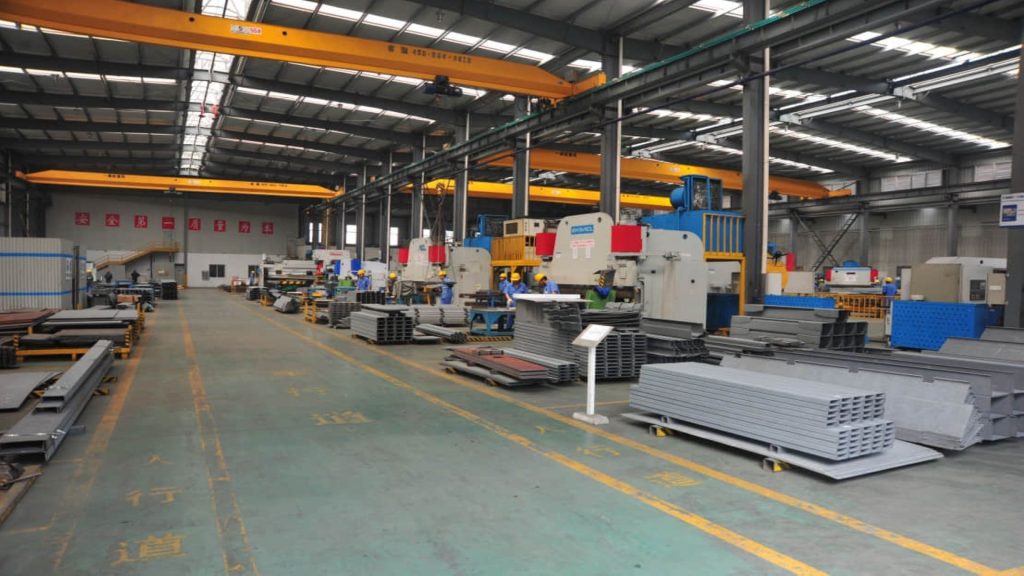

CIMC Yangzhou operates full sets of self-contained production lines: Raw material treatment, parts cutting, punching and welding, general assembly, painting, decoration (for modular units). Total manufacturing area of more than 200,000 ㎡, annual capacity: 150,000 special containers / 20,000 modular units.
