Energy Storage Container

Energy Storage Container is also called PCS container, Battery Container. Energy Storage Container integrated with full set of storage system inside including Fire suppression system, Module BMS, Rack, Battery unit, HVAC, DC panel, PCS.

Description

CIMC Yangzhou Base Energy Storage Container Introduction



  • Energy Storage Container integrated design for easy delivery
  • Outdoor container standard shell, reliable and durable, suitable for complex weather conditions
  • Energy Storage Container has a complete fire Suppression system and power supply system (Rack, DC panel, Fire Suppression System, Module BMS, Rack BMS, System BMS, Battery Protection Unit, HVAC, Power Conversion System)
  • Meet personalized customization and have a broad application market



Energy Storage Container is an energy storage battery system, which includes a monitoring system, battery management unit, particular fire protection system, special air conditioner, energy storage converter, and isolation transformer developed for the needs of the mobile energy storage market.

The battery system is mainly composed of battery cells in series and parallel: more than a dozen battery cells are connected in series and parallel to form a battery box. Then, the battery boxes are connected in series to form a battery string and increase the system voltage. Finally, the battery strings are connected in parallel to improve the system capacity and integrated installation In the battery cabinet.

The monitoring system mainly realizes external communication functions, network data monitoring and data acquisition, analysis, and processing, ensuring accurate data monitoring, high voltage, current sampling accuracy, data synchronization rate, and remote control command execution speed.

The battery management unit has a high-precision single team. The voltage detection and everyday detection functions ensure the voltage balance of the battery modules and avoid circulating current between the battery modules, which affects the system’s operating efficiency.

To ensure the system’s safety, the container is equipped with a dedicated fire and air-conditioning system. The fire-fighting system senses fire alarms through safety equipment such as smoke sensors, temperature sensors, humidity sensors, emergency lights, etc., and automatically extinguishes fires; the dedicated air-conditioning system is based on the external ambient temperature. Control the cooling and heating system of the air conditioner through thermal management strategies to ensure that the temperature in the container is in the appropriate range and prolong the battery’s service life.

CIMC Yangzhou Base Energy Storage Container can integrate energy storage converters and energy management systems according to customer needs.

Energy Storage Container has the characteristics of simplified infrastructure construction cost, short construction period, high degree of modularization, and easy transportation and installation. It can be applied to power stations such as fire, wind, and solar power or islands, communities, schools, scientific research institutions, factories, and oversized loads. Center and other applications.



Energy Storage Container Product Features



The Energy Storage Container is designed as a frame structure. One side of the box is equipped with PLC cabinets, battery racks, transformer cabinets, power cabinets, and energy storage power conversion system fixed racks. In addition, the container is equipped with vents.

The components in the Energy Storage Container are divided into two rows and arranged on both sides of the container, leaving a passage in the middle. The details are placed on both sides of the container. They can be positioned on the inner sidewall of the container to improve the reliability of fixation. The middle passage is convenient for workers to inspect and maintain. No obstruction, smooth ventilation, reasonable layout, simple structure, the design of the box structure has a service life of not less than 20 years, and the outer surface of the box has a rigorous treatment. The paint surface is even, fine and smooth.

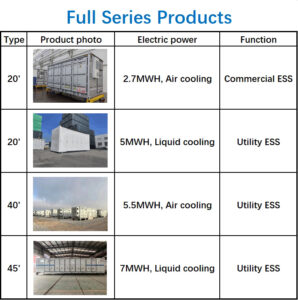

full series products
full series products



Energy Storage Container Data Sheet



Type 10′ Energy Storage Container
External Size 2991(L) x 2438(W) x 2896(H) mm
Internal Size 2645(L) x2175(W) x 2590(H) mm
Tare Weight 3000kg
Max gross 7160kg
Ingress Protection IP54
Electric power 0.5-1MWH
Material and Insulation The steel structure is made of  weathering resistant steel(Corten A);

Rock wool plugboard with thermal conductivity of 0.04 (w / (m.k)) is used for thermal insulation

Electrical system Have complete fire Suppression system and power supply system

(Rack, DC panel, Fire Suppression System

Module BMS, Rack BMS,System BMS

Battery Protection Unit, HVAC, Power Conversion System)



Type 20′ Energy Storage Container
External Size 6058(L) x 2438(W) x 2896(H) mm
Internal Size 5340(L) x2188(W) x 2590(H) mm
Tare Weight 4500kg
Max gross 25980kg
Ingress Protection IP54
Electric power 1-1.5MWH
Material and Insulation The steel structure is made of  weathering resistant steel(Corten A);

Rock wool plugboard with thermal conductivity of 0.04 (w / (m.k)) is used for thermal insulation

Electrical system Have complete fire Suppression system and power supply system

(Rack, DC panel, Fire Suppression System, Module BMS

Rack BMS, System BMS, Battery Protection Unit

HVAC, Power Conversion System)



Type 40′ Energy Storage Container
External Size 12192(L) x 2438(W) x 2896(H) mm
Internal Size 11880(L) x2188(W) x 2590(H) mm
Tare Weight 6950kg
Max gross 23530kg
Ingress Protection IP54
Electric power 1.5-2MWH
Material and Insulation The steel structure is made of  weathering resistant steel(Corten A);

Rock wool plugboard with thermal conductivity of 0.04 (w / (m.k)) is used for thermal insulation

Electrical system Have complete fire Suppression system and power supply system

(Rack, DC panel, Fire Suppression System, Module BMS

Rack BMS, System BMS, Battery Protection Unit

HVAC, Power Conversion System)



Type 45′ Energy Storage Container
External Size 13716(L) x 2438(W) x 2896(H) mm
Internal Size 15840(L) x2188(W) x 2590(H) mm
Tare Weight 8700kg
Max gross 21780kg
Ingress Protection IP54
Electric power 2-2.5MWH
Material and Insulation The steel structure is made of  weathering resistant steel(Corten A);

Rock wool plugboard with thermal conductivity of 0.04 (w / (m.k)) is used for thermal insulation

Electrical system Have complete fire Suppression system and power supply system

(Rack, DC panel, Fire Suppression System

Module BMS, Rack BMS, System BMS

Battery Protection Unit, HVAC, Power Conversion System)



CIMC Yangzhou Base Energy Storage Container Service Details



Pre-sales service Technical and commercial consultant
Customized design and engineering
Return Policy/After-sales Service 1 year warranty for structure
3 years for painting
5 years for decal
Lead time 60 days after order confirmation
Transportation Method Ocean, Railway, Road
Freight and transportation period Confirmed according to specific destination
MOQ 1 unit



Energy Storage Container Flysheet





We, CIMC container Yangzhou base is the subsidiary of China International Marine Containers (Group) Co, Ltd.(CIMC)

CIMC container Yangzhou is consit of 3 companies: TLC, RYC and Tailee, with more than 25 years` experience for container and innovative products` design and manufacturing.

ISO standard/Special dry container, ISO standard/Special reefer container, containerized integration and modular buildings.

We have totally 400,000m2 factory area, and 8 flexible production lines
Annual capacity:  150,000 TEU ISO/Special containers,  20,000 units modules
Staffs: 2,500
Annual Revenue: 2 Billion(RMB)

Pls contact us through:
*  Inquiry module in our website
* E-Mail: onlinesales@cimc.com
* Phones marked in the website contact page

We have standard product for ISO/Special container and Modular Buildings, we will reply you quickly with the quotation for such kind of product.

We also focus on the customized and both developed product,  the quotation will be sent after mutual discussion for detailed requirement.

We have various ISO and economical products, as well as the complex highly customized ones, the lead time is in range of 20 to 90 days, we will further discuss with you to confirm during both communication.

We have professional QC team to trace each production course and ensure the product quality from parts fabrication to final completion. We will provide the quality qualified document before delivery.

The third party inspection and certificates company could also be employeed as both agreement, we also welcome the client to send representative to visit our company for the course and final inspection before product delivery.

We locates besides local Yangzhou port, the products could be transported through local port to Shanghai port, then to final destination port allover the world.
If batch order, we can also deliver from the local port directly to destination port.

Besides the sea transportation,  road, railway even aircraft delivery is also available for part of the product and countries, we have professional logistic team to take charge of the service.

Standard product:    1 year for structure, 3 years for painting.

The customized product warranty will be discussed by both parties.

ClMC Yangzhou adheres to strict quality control and continuous innovation. With more than 20 years development, we attained ISO certifications, third party factory approvals, specific product & operator certificates, as well as various awards and patents issued by various levels of government and related associations.

ISO 9001
ISO 9001
ISO 14001
ISO 14001
ISO 45001
ISO 45001
CE-EN1090
CE-EN1090
ABS Certificate
ABS Certificate
CSS Certificate
CSS Certificate
LR Factory Certificate
LR Factory Certificate
RS Factory Certificate
RS Factory Certificate
DEKRA
DEKRA

CIMC Yangzhou operates full sets of self-contained production lines: Raw material treatment, parts cutting, punching and welding, general assembly, painting, decoration (for modular units). Total manufacturing area of more than 200,000 ㎡, annual capacity: 150,000 special containers / 20,000 modular units.
