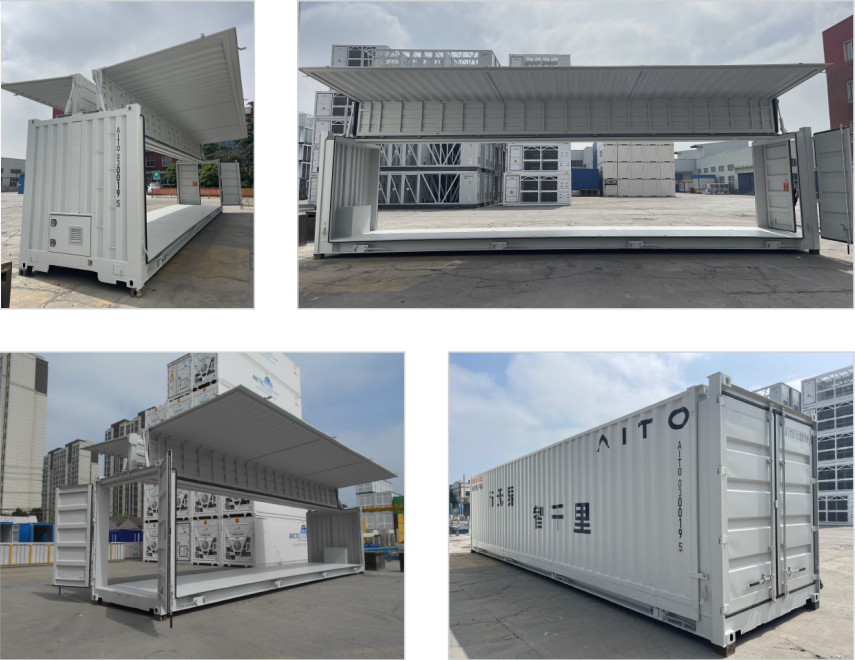

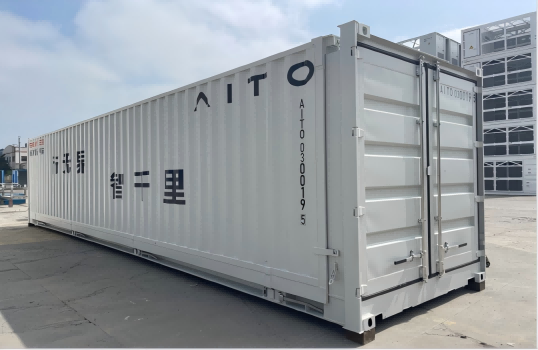

40’Wing Body Container
1)New solution for the “2024 problem” in Japan: Due to shortened working hours for truck drivers and shortage of road transportation capacity, Wingspan vehicles need to be converted to wing containers to adapt to the switching of multiple transportation modes.
2)As an alternative product for traditional wingspan vehicles, wing containers can be combined with trailers for logistics transportation, or separated from the vehicle body for storage or multimodal transportation.
3)Popularly applied in the Chinese domestic automotive industry for the warehousing and transportation of components.
Design Features:
● Can be lifted from the top when the container is heavily loaded;
● The large wingspan size and opening and closing angle can meet the needs of more models of forklifts for loading and unloading operations;
● With an integrated hydraulic station, all cylinders and pipes are installed outside the container body so that no oil leakage pollution to cargo;
● The hydraulic station has a manual pump, which can also open the wings in case of damage to the hydraulic motor;
● The hydraulic cylinder is equipped with an explosion-proof valve, which can work at a uniform speed, even when the hydraulic pipeline is damaged;
● The unique wing lock system can effectively cope with the impact of goods on the wing span during transportation.
| Specification | Value |
|---|---|
| External Dimension (mm) | 12,192 × 2,438 × 2,896 |
| Internal Dimension (mm) | 12,032 × 2,338 × 2,093 |
| Side Opening (mm) | 2–5, 455 × 2,093 |
| Max Gross Weight (kg) | 24,000 |
| Tare Weight (kg) | 3,650 |
| Operation Voltage | DC 24V |

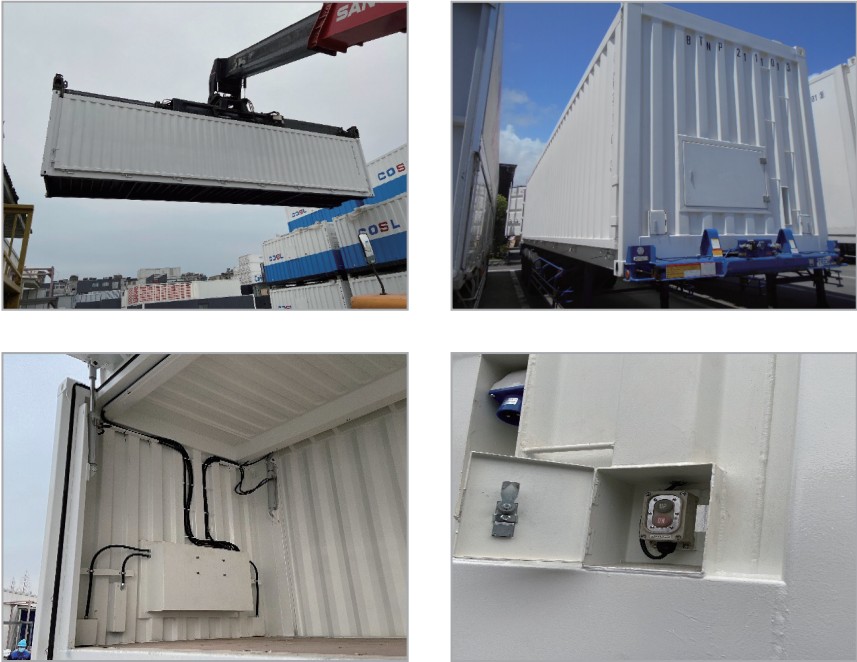

40’Steel Structure Wing Body Container
Features:
● Intermodal transportation: ocean /truck/railway
● Large side opening up to 11.3m x2.05m, suit for large size cargo loading S unloading
● Heavy load cylinder system from South Korea.Stable to reduce the maintenance
● Strong structure to withstand the impact during transportation
● Convenient to operate the side wing.Easy to load and unload the cargo
| Specification | Value |
|---|---|
| External Dimension (mm) | 12,192 × 2,438 × 2,896 |
| Internal Dimension (mm) | 12,032 × 2,329 × 2,045 |
| Side Opening (mm) | 11,327 × 2,045 |
| Max Gross Weight (kg) | 24,000 |
| Tare Weight (kg) | 5,980 |
| Operation Voltage | DC 24V |

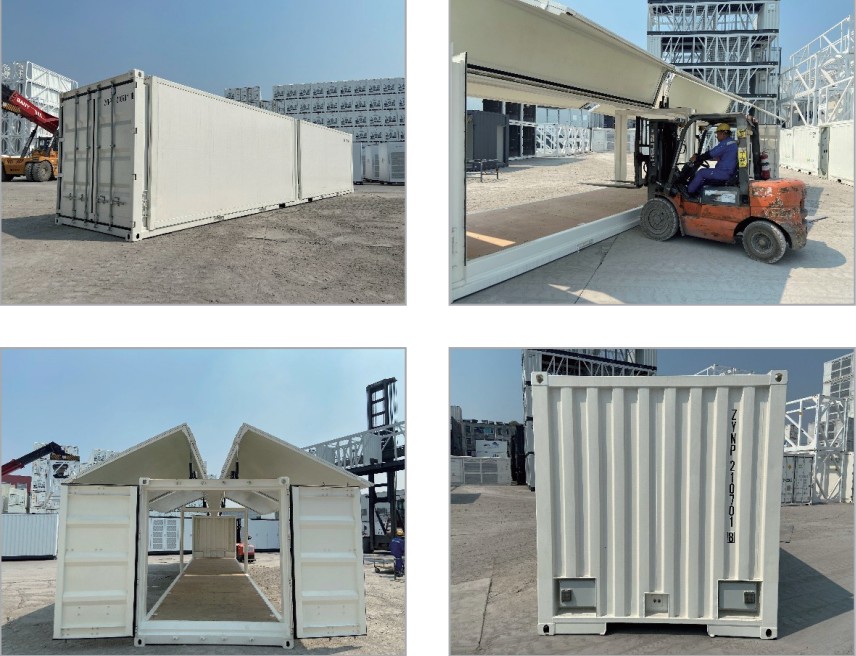

40′ Light Weight Wing Body Container
Features:
● To be used with truck trailer, the wing operation power from the truck battery
● The container is removable and can be used on a different truck
● Use a fully integrated “mini motion” system to operate the wing, save internal space
● UUseAluminum structure panel to minimize the weight of the container
● Convenient to operate the side wing. Easy to load and unload the cargo
| Specification | Value |
|---|---|
| External Dimension (mm) | 12,192 × 2,438 × 2,896 |
| Internal Dimension (mm) | 12,032 × 2,338 × 2,093 |
| Side Opening (mm) | 2 – 5,455 × 2,093 |
| Max Gross Weight (kg) | 24,000 |
| Tare Weight (kg) | 3,650 |
| Operation Voltage | DC 24V |
