Контейнер для хранения энергии

• Energy Storage Container integrated design for easy delivery
• Outdoor container standard shell, reliable and durable, suitable for complex weather conditions
• Energy Storage Container has a complete fire Suppression system and power supply system (Rack, DC panel, Fire Suppression System, Module BMS, Rack BMS, System BMS, Battery Protection Unit, HVAC, and Power Conversion System)
• Meet personalized customization and have a broad application market

Energy Storage Container is an energy storage battery system, which includes a monitoring system, battery management unit, particular fire protection system, special air conditioner, energy storage converter, and isolation transformer developed for the needs of the mobile energy storage market.

The battery system is mainly composed of battery cells in series and parallel: more than a dozen battery cells are connected in series and parallel to form a battery box. Then, the battery boxes are connected in series to form a battery string and increase the system voltage. Finally, the battery strings are connected in parallel to improve the system capacity and integrated installation In the battery cabinet.

The monitoring system mainly realizes external communication functions, network data monitoring and data acquisition, analysis, and processing, ensuring accurate data monitoring, high voltage, current sampling accuracy, data synchronization rate, and remote control command execution speed.

The battery management unit has a high-precision single team. The voltage detection and everyday detection functions ensure the voltage balance of the battery modules and avoid circulating current between the battery modules, which affects the system’s operating efficiency.

To ensure the system’s safety, the container is equipped with a dedicated fire and air-conditioning system. The fire-fighting system senses fire alarms through safety equipment such as smoke sensors, temperature sensors, humidity sensors, emergency lights, etc., and automatically extinguishes fires; the dedicated air-conditioning system is based on the external ambient temperature. Control the cooling and heating system of the air conditioner through thermal management strategies to ensure that the temperature in the container is in the appropriate range and prolong the battery’s service life.

CIMC TLC|RYC Energy Storage Container can integrate energy storage converters and energy management systems according to customer needs.

It has the characteristics of simplified infrastructure construction cost, short construction period, high degree of modularization, and easy transportation and installation. It can be applied to power stations such as fire, wind, and solar power or islands, communities, schools, scientific research institutions, factories, and oversized loads. Center and other applications.

Energy Storage Container Product Features

The Energy Storage Container is designed as a frame structure. One side of the box is equipped with PLC cabinets, battery racks, transformer cabinets, power cabinets, and energy storage power conversion system fixed racks. In addition, the container is equipped with vents.

The components they are divided into two rows and arranged on both sides of the container, leaving a passage in the middle. The details are placed on both sides of the container. They can be positioned on the inner sidewall of the container to improve the reliability of fixation. The middle passage is convenient for workers to inspect and maintain. No obstruction, smooth ventilation, a reasonable layout, simple structure, the design of the box structure has a service life of not less than 20 years, and the outer surface of the box has a rigorous treatment. The paint surface is even, fine and smooth.

Custom Energy Storage Solutions:

We provide walk-in/non-walk-in energy storage containers, liquid cooling cabinets, marine energy storage containers and various non-standard energy storage products.
Meet the requirements of earthquake resistance, fire resistance, insulation, corrosion resistance and easy shipping.
Integrate PCS, BMS, EMS and earthquake resistance, temperature control, monitoring, and electrical systems.
Customize products that meet certifications in different regions according to customer needs.

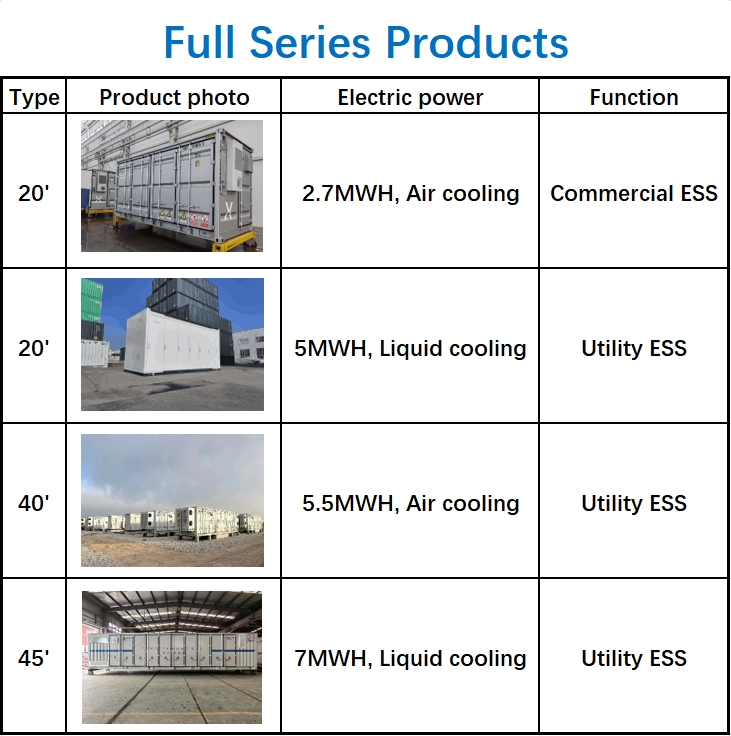

Energy Storage Container Data Sheet

CIMC TLC|RYC Energy Storage Container Service Details
