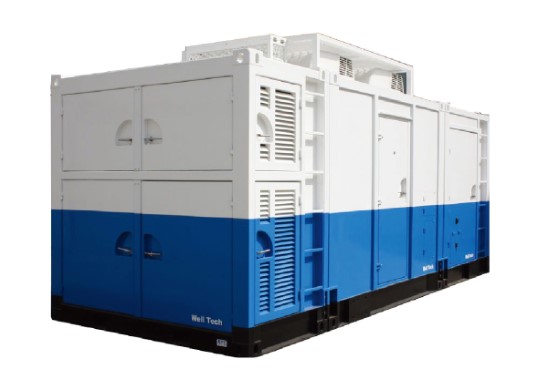

CIMC TLC|RYC 泥分析キャビン はじめに
- Mud Analysis Cabin is used for Mud chemical analysis in the process of offshore oil and gas development, equipped with oxygen and nitrogen inputs, explosive-proof transformer & output 110v transformer.
- Zone 1 / Zone 2 of flammable gas hazardous atmosphere
- A-60 fire rating certificated by DNV · GL
- Air pressurized for working (+80~ +120 Pa)
- Main Power Supply 380V/460V AC (3PH+PE), 220V AC(1PH+PE), 50HZ
- DNV 2.7 -1 / EN 12079 certificated by DNV · GL
- The applicable requirement of SOLAS 2009 as amended and IEC60079- 13(2010) certificated by DNV · GL
Combining domestic and foreign high-quality explosion-proof component manufacturers, the explosion-proof power system developed and produced with customers has full-function automatic control such as fire, gas, and toxic gas control systems and engine parameter monitoring, automatic alarm and fault status history storage, emergency shutdown, safety power output, remote shutdown and alarm output.
Positive pressure explosion-proof warehouse series products can obtain domestic 3C certification, domestic CCS explosion-proof certification, and EU ATEX explosion-proof certification upon request.
Mud Analysis Cabin Data Sheet
| 外寸 | Expanded: 4020(L) x 2300(W) x 2700(H) mm | |
| 内部サイズ | Expanded: 2270(L) x 210(W) x1900(H) mm | |
| 風袋重量 | 8000 kg | |
| 屋根 | T3.0mm SPA-H +t30 PU foam+ T30mm rock wool sandwich panel. | |
| Sidewall | T3.0mm SPA-H +t30 PU foam+ T30mm rock wool sandwich panel. | |
| Expansion operation | Air pressurized for working (+80~ +120 Pa) | |
| End wall | T3.0mm SPA-H +t30 PU foam+ T30mm rock wool sandwich panel. | |
| フロア | T20mm plywood +T3.0mm Rubber vinyl | |
| ドア | Roller shutter door / A60 Door | |
| Electrical System | 120V, 50/60HZ, IEC60079- 13(2010) certificated by DNV · GL | |
| オプション | For good logging in the process of offshore oil and gas development equipped with a hydraulic unit and roller. Zone 1 / Zone 2 of flammable gas hazardous atmosphere | |
