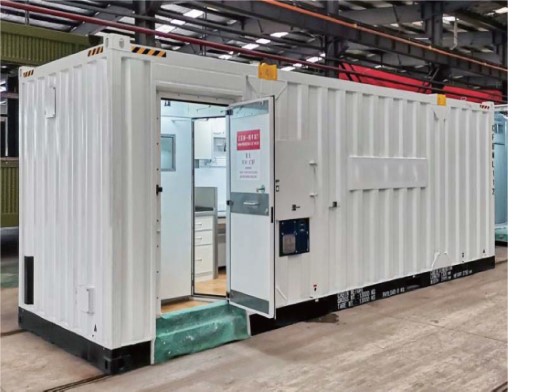

Mud logging cabin is the carrier of logging instrument system, steel welded container barracks, heavy bearing capacity, lifting transport is not deformed.
Mud logging cabin requires a high level of fire protection compared to normal containerized Integration.
CIMC TLC|RYC Mud Logging Cabin is decorated with high-quality marine outfitting panels for interior decoration and installation of fireproof doors, windows, and escape doors.
Our positive pressure explosion-proof and fire-gas control systems have obtained national laboratory electrical environment form test reports;
The explosion-proof engine assembly skid has also passed the Norwegian Classification Society DNV product certification and obtained a certificate.
CIMC TLC|RYC Грязевая хижина Введение
- Mud Logging Cabin can use for logging work in the process of offshore oil and gas development
- Zone 1 / Zone 2 of flammable gas hazardous atmosphere
- A-60 fire rating certified by DNV · GL
- Mud Logging Cabin air pressurized for working (+80~ +120 Pa)
- Main Power Supply （380V/440V/480V/600V/690V AC, 3PH+PE, 50A)
- DNV 2.7 -1 / EN 12079 certified by DNV · GL
- The applicable requirement of SOLAS 2009 as amended and IEC60079- 13(2010) certified by DNV · GL
Грязевая хижина Applicable Scenarios
- Oil Exploration
- Geological exploration
- Natural Gas Exploration
- Hydrological exploration
- Mud logging and chemical analysis in the process of offshore oil and gas development
Mud Logging Cabin Data Sheet
| External Size | Expanded: 3600(L) x 2800(W) x 2896(H) mm | |
| Internal Size | Expanded: 3300(L) x2500(W) x2300(H) mm | |
| Tare Weight | 9000 kg | |
| Roof | T3.0mm SPA-H +t60 A60 Rockwool+ T30mm rock wool sandwich panel. | |
| Sidewall | T3.0mm SPA-H +t60 A60 Rockwool+ T30mm rock wool sandwich panel. | |
| Expansion operation | Air pressurized for working (+80~ +120 Pa) | |
| End wall | T3.0mm SPA-H +t60 A60 Rockwool+ T30mm rock wool sandwich panel. | |
| Floor | T30mm A60 deck + T2.0mm check steel plate +T1.6mm PVC vinyl | |
| Door | Roller shutter door / A60 Door | |
| Electrical System | Main Power Supply 380V/460V AC (3PH+PE), 220V AC(1PH+PE), 50HZ IEC60079- 13(2010) certificated by DNV · GL | |
| Optional fixtures | For Mud chemical analysis in the process of offshore oil and gas development equipped with oxygen and nitrogen inputs explosive-proof transformer & output 110v transformer. Zone 1 / Zone 2 of flammable gas hazardous atmosphere | |
CIMC TLC|RYC Грязевая хижина Service Details
| Pre-sales service | Technical and commercial consultant Customized design and engineering |
| Return Policy/After-sales Service | 1 year warranty for structure 3 years for painting 5 years for decal |
| Lead time | 70 days after order confirmation |
| Transportation Method | Ocean, Railway, Road |
| Freight and transportation period | Confirmed according to specific destination |
| MOQ | 1 unit |
